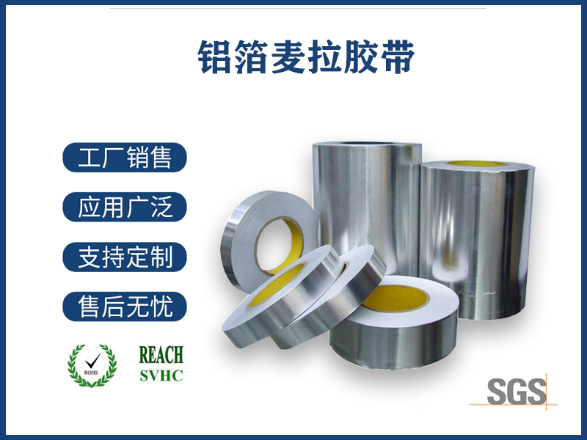

[產品說明]: 以高純度的鋁箔為基材，再覆以PET聚酯帶及環保型導電膠或者不導電膠制作而成的鋁箔麥拉膠帶，具有極佳的靜電消散性，不易皺折，不易撕裂、耐熱、穩定性好；一面導電，一面絕緣，可有效保護包覆的部位。
Product Description: Aluminum polyester foil tape mainly made of high purity aluminum foil, cover with PET tape and environmentally conductive adhesive or non conductive adhesive, which has excellent franklinism dissipation, not easy to fold, not easy to tearing, heat-resistant, stability, one side conductive, one side insulation, it can protect the wrapping part.
[應用方式]: 主要用于電腦顯示器，電腦周邊線材與變壓器制造，中央空調管線，抽煙機，冰箱，熱水器等的管線接縫，電線、電纜、精密電子產品、電腦設備等；高頻傳輸時，隔離電磁波干擾，耐高溫防止自燃。
Application: Mainly apply to CRT, computer line and transformer manufacture, pipe connect of central Air - Conditioning pipe, smoke sucker, fridge, water heater, wire, cable, precise electronic product and computer facility, when it transfer with high frequency, isolate interference of electromagnetic wave, high temperature resistance and avoid auto-ignition.
主要技術指標：
Main specifications:
| 產品規格Specification | 組成Composition | 伸長率Elongation（%） | 抗張強度Tensile strength（kgf/m2） | 基重Basis weight（g/m2） | 電阻Resistance(Ωμ.mm) | ||
| 鋁厚AL | 麥拉厚PET | 壓克力膠Acrylic adhesive | |||||
| 65μm | 10μm | 12μm | 40±5μm | 35↑ | 0.22↑ | 66.15 | 2500↓ |
| 80μm | 25μm | 12μm | 40±5μm | 35↑ | 0.37↑ | 71.55 | 2500↓ |
| 103μm | 35μm | 25μm | 40±5μm | 35↑ | 0.40↑ | 79.65 | 2500↓ |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | |||||||
二、顏色：銀色
Color: Silver
三、電氣特性：具有保溫，隔熱,防水，粘力佳，耐寒性好，易撕，為消除電磁干擾(EMI),隔離電磁波對人體的危害，避免不需要之電壓或電流而影響功能。
Electrical characteristics: Heat preservation, thermal insulation, waterproof, excellent adhesive, cold-resistant, easy to tear, to remove elimination of electromagnetic interference (EMI)，isolate electromagnetic wave to harm human, avoiding undesired voltage and current to effect the function.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
