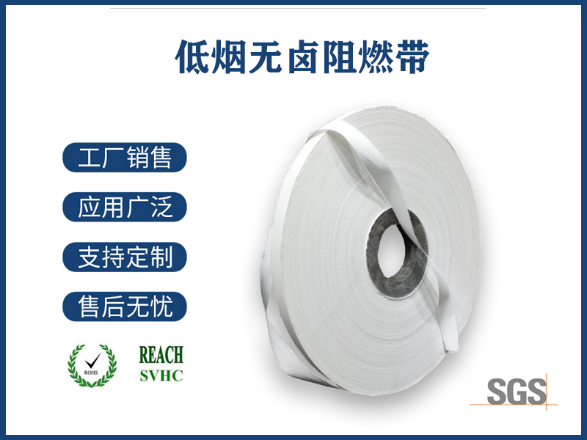

[產品說明]: 由玻璃纖維布及低煙無鹵阻燃材料加工制成。
Product Description: Made of fiberglass fabric and LSNH flame retardant materials.
[應用方式]: 俗稱玻纖布涂膠帶，主要用于各類無煙、低煙、潔凈的高阻燃電纜、耐火電纜等。
Application: Commonly known as glass fiber fabric coated tape, mainly used for all kinds of high flame retardant cables and fire-resistant cable, with smoke-free, low smoke and cleaning.
一、主要技術指標：
Main specification:
| 產品規格Specification (μm) | 150±20 | 200±20 | 250±20 | |
| 單重Unit weight（g/m2） | 180±25 | 180±25 | 220±25 | |
| 拉伸強度Tensile strength (N/25mm) | 200↑ | 300↑ | 400↑ | |
| 氧指數Oxygen index (%) | 55↑ | 55↑ | 55↑ | |
| 煙密度Smoke Density Dm(NF值) | 150↓ | 150↓ | 150↓ | |
| 燃燒時放出的腐蝕性氣體Corrosive gases in burning | 水溶液的PH值PH value of aqueous | 4.3↑ | 4.3↑ | 4.3↑ |
| 導電率Conductive(μs/mm) | 4.0↓ | 4.0↓ | 4.0↓ | |
二、顏色：白色。
Color: White
三、電氣特性：比重比壓花無紡布輕40%左右，成本較低，且厚度較薄，柔軟性好，耐溫達280°C。
Electrical characteristics: Weight is lighter 40% than embossing non-woven tape, lower cost, thin thickness, good flexibility, heat resistance up to 280°C.
四、分切及包裝：分切最小寬度為15mm以上，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 15mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
