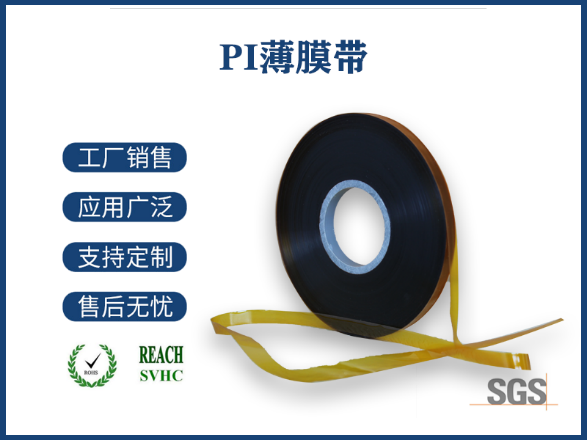

[產品說明]: 具有很高的絕緣性能和耐性能，該聚酰亞胺薄膜是用流延法生產的，它具有耐高溫，耐輻射個優質的介電性能。聚酰亞胺F46薄膜帶由聚酰亞胺薄膜單面或雙面涂以F46（聚全氟代乙丙烯乳液）高溫洪培而成。
Product Description: Good insulation and high performance, the polyimide film is produced by casting method, which are high temperature resistant, the dielectric properties of the radiation resistance. Polyimide film F46 tape made of polyimide film single sided or double sided coated F46 (Poly per fluorinated ethylene propylene emulsion) form with baking in high temperature.
[應用方式]: 適用于高溫電子線，航空導線，電器絕緣以及其他用途的電工絕緣材料，可根據客戶要求分切不同的盤帶。
Application: Suitable for electrical insulation materials in high temperature electronic wire, aerial wires, electrical insulation and other usage, can be slitting different dribbling according to customer's requirements.
一、主要技術指標：
Main specification:
| 產品規格Specification(μm) | 伸長率Elongation（%） | 抗張強度Tensile strength（Mpa） | 單位重量Unit weight（g/m2） | 表面電阻值Surface resistance（MΩ） | 工頻電氣強度Electrical strength（Mv/m） |
| 25±2 | 35↑ | 115↑ | 3.6 | 1.0↑ | 150↑ |
| 40±2 | 35↑ | 115↑ | 5.8 | 1.0↑ | 130↑ |
| 50±2 | 35↑ | 115↑ | 7.2 | 1.0↑ | 130↑ |
| 75±2 | 35↑ | 115↑ | 10.8 | 1.0↑ | 110↑ |
| 100±3 | 35↑ | 115↑ | 14.4 | 1.0↑ | 110↑ |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | |||||
二、顏色：金黃色。
Color: Golden yellow
三、電氣特性：具有優良的耐高、低溫性、電氣絕緣性、耐輻射性，以及高溫自粘密封的特點，可作電線、電纜、電磁線等的絕緣層。
Electrical characteristics: With excellent resistance to high and low temperature resistance, electrical insulation, resistance to radiation, as well as self adhesive sealing in the high temperature, can use as insulation layer in wires, cables, electromagnetic wire.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
