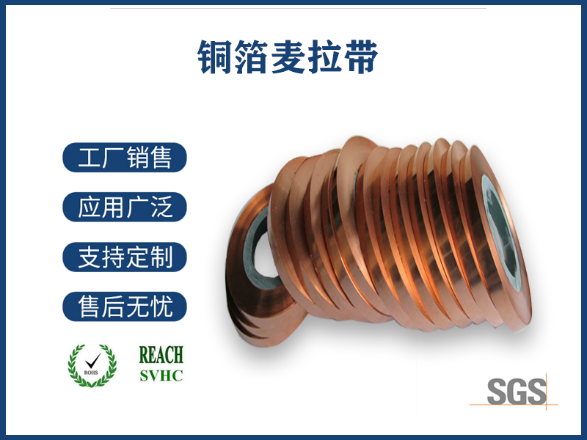

[產品說明]: 銅箔麥拉帶也叫銅塑復合帶，由銅箔、PET聚酯薄膜、粘合劑組成，具有低表面氧氣特性，可以附著與各種不同基材，如金屬，絕緣材料等，廣泛應用于通訊、電腦、無線電等領域的電子元器件材料以及電線、電纜的屏蔽材料和FPC線路板、柔性線路板的配套產品。壓延銅箔因其較電解銅箔具有高強度、高彎曲性、延展性、導電性能好、散熱好、表面光澤更優(yōu)等特點成為某些產品不可替代的原料 。
Product Description: Copper polyester tape also called copper plastic composite tape, consist of copper foil、PET film and adhesive, with oxygen properties in low surface, can be attached with a variety of different base materials, such as metal and insulation materials etc. Widely used in the field, such as communication, computer, radio and other electronic components. And shielding materials for cable, FPC wire board and soft wire board. Cause rolled copper foil also called electrolytic copper foil with high strength, high flexibility, good ductility, good conductivity, heat dissipation and gloss characteristics it becomes a necessary raw materials of some products.
[應用方式]: 主要用于屏蔽性能要求較高的電纜中，如計算機電纜、信號電纜、 通訊電纜、同軸電纜等對屏蔽性能要求較高的特種電纜。聚酯薄膜起到加強銅箔拉伸強度的作用。
Application: Mainly used in shielded cables with high performance requirements, computer cable, signal cable, communication cable, and coaxial cable. Polyester film plays a role in strengthening the tensile strength of the copper foil.
主要技術指標：
Main specifications:
| 產品規(guī)格Specification | 組成Composition | 伸長率Elongation（%） | 抗張強Tensile strength（Mpa） | 基重Basis weight（g/m2） | 剝離強度Peel strength(N/cm) | |
| 銅厚Cu | 麥拉厚PET | |||||
| 30μm | 15μm | 12μm | 8↑ | 100↑ | 155 | 3↑ |
| 33μm | 18μm | 12μm | 8↑ | 100↑ | 182 | 3↑ |
| 46μm | 18μm | 25μm | 8↑ | 100↑ | 200 | 3↑ |
| 35μm | 20μm | 12μm | 8↑ | 100↑ | 199 | 3↑ |
| 48μm | 20μm | 25μm | 8↑ | 100↑ | 218 | 3↑ |
| 53μm | 25μm | 25μm | 8↑ | 100↑ | 262 | 3↑ |
| 103μm | 25μm | 75μm | 8↑ | 100↑ | 332 | 3↑ |
| 除以上規(guī)格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | ||||||
二、顏色：銅色。
Color: Copper
三、銅箔麥拉的電氣特性：主要作為抗電磁干擾用，通常情況是在1-100MHZ，屏蔽衰減100dB左右使用。
Electrical characteristics: Primarily as anti-electromagnetic interference, usually use in 1-100MHZ, shielding attenuation of 100dB.
四、分切及包裝：分切最小寬度為2mm，采用軸裝形式；常規(guī)分切寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
