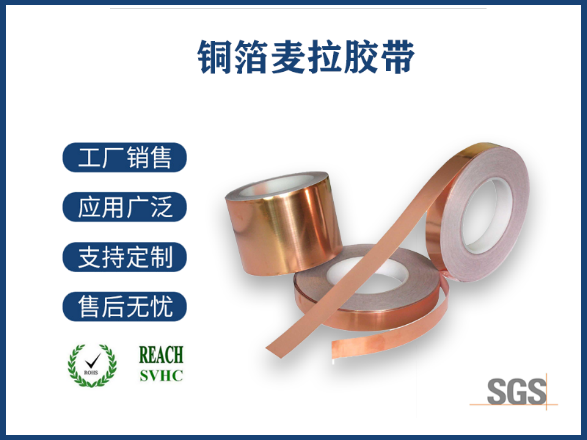

[產品說明]: 銅箔膠帶由銅箔、麥拉、傳導壓克力膠組成，其粘性好，附著力強。銅箔膠帶分為單面覆膠和雙面覆膠，單面覆膠的銅箔膠帶又分為單導銅箔膠帶和雙導銅箔膠帶，單導銅箔膠帶即指覆膠面不導電，只有另外一面銅導電，故稱單導即單面導電；雙導銅箔膠帶是指覆膠面導電，而且另一面銅本身也導電，故稱雙導即雙面導電。
Product Description: Copper foil tape made up of copper foil, Mylar and conductive acrylic adhesive, sticky, strong adhesion. Copper foil tape consists of coated plastic and double side coating, coated copper foil tape is made up of single conductive foil tape and double conductive copper foil tape, single conductive copper foil tape refers to the coating non-conductive, only copper can conductive, it is called single conductive; double conductive copper foil tape refers to the coating conductive, and copper also conductive, it is called double conductive.
[應用方式]: 主要應用于電磁屏蔽，分電信號屏蔽和磁信號屏蔽兩種，電信號屏蔽主要是依靠銅本身優異的導電性能，而磁屏蔽則需要銅箔膠帶的膠面導電物質“鎳”來達到磁屏蔽的作用，因而被廣泛應用于手機，筆記電腦和其他數碼產品之中。同時可用于接地，各類電子元器件的表面屏蔽。模切沖型后，可應用筆記本電腦、LCD顯示器、復印機等需要電磁屏蔽的部位。
Application: Mainly used for electromagnetic shielding, two of them are signal shielding and magnetic shielding, signal shielding mainly depend upon excellent conductivity of copper, and magnetic shielding needs the conductive substance "nickel" of copper foil tape to achieve the effect of magnetic shielding, which is widely used in mobile phones, laptop and other digital products. It also can be used for grounding, the shielding of electronic components. After punching, can used in parts of needing electromagnetic shielding, such as laptop, LCD monitors and duplicator.
主要技術指標：
Main specification:
| 產品規格Specification | 組成Composition | 伸長率Elongation（%） | 抗張強度Tensile strength（kgf/m2） | 基重Basis weight（g/m2） | 電阻Resistance(Ωμ.mm) | ||
| 銅厚Cu | 麥拉厚PET | 壓克力膠Acrylic adhesive | |||||
| 65μm | 10μm | 12μm | 40±5μm | 35↑ | 0.22↑ | 66.15 | 2500↓ |
| 80μm | 25μm | 12μm | 40±5μm | 35↑ | 0.37↑ | 71.55 | 2500↓ |
| 103μm | 35μm | 25μm | 40±5μm | 35↑ | 0.40↑ | 79.65 | 2500↓ |
除以上規格外，其它可按客戶特殊要求單獨設計。 In addition to the above specifications, other special requirements can design according to customers | |||||||
二、顏色：銅色
Color: Copper
三、電氣特性：具有保溫，隔熱，防水，粘力佳，耐寒性好，易撕，為消除電磁干擾(EMI)，隔離電磁波對人體的危害，避免不需要之電壓或電流而影響功能。
Electrical characteristics: Heat preservation, thermal insulation, waterproof, excellent adhesive, cold-resistant, easy to tear, to remove elimination of electromagnetic interference (EMI)，isolate electromagnetic wave to harm human, avoiding undesired voltage and current to effect the function.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
